        Tee Pipe Fitting Wifhin HV Compression Moulding Machine

        Product model:Yz65

        Product number:40

        View videoBack

        Feature:

        slide proportional speed system, blanking buffer device, hydraulic plate proportional system, photoelectric protective device, cooling device, die protect device, displacement transducer, industrial t

        Details

          TEE EXTRUSION HYDRAULIC   PRESS

                                                                                             Yz65 Series

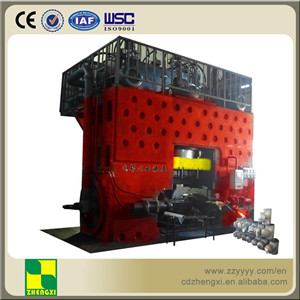

        MACHINE APPEARANCE





        DATA SHEET

         Model  Yz65-400T  Yz65-700T Yz65-1000T  Yz65-1200T   Yz65-1500T  Yz65-1800T Yz65-2000T
         Normal Force(KN)  4000  7000  10000  12000  15000  18000  20000
         Liquid Pressure(Mpa)  25  25  26

         27

         27  28  28
         Working Stroke(mm)  200  250  300  350  400  450  500
         Window Dimension(mm)  650  750  950  1150  1350  1500  1650
         Working Speed(mm/s)  100  100  100  100  100  100  100
         Working Table Size(mm)  700*600*100  800*700*160  900*850*150  1000*900*150  1000*900*150  1300*1200*250  1500*1400*250
         Motor Power(KW)  29.5  44.5  55  71  105  110  132
         Outline Dimension(mm)  2500*1000*3500  7000*2000*4000  3500*2400*4500  1000*2500*5000  1900*2900*6000  5000*3000*6500  5200*3200*7000





        ACCESSORIES BRAND







        OPTIONAL ACCESSARIES
