        Four Column Head Plate Forming Hydraulic Press Machine

        Product model:YzF27

        Product number:39

        View videoBack

        Feature:

        oil cooling device, touch scren, mold protection device

        Details

          HEMISPHERICAL HEAD DRAWING    PRESS

                                                                                             YzF27 Series

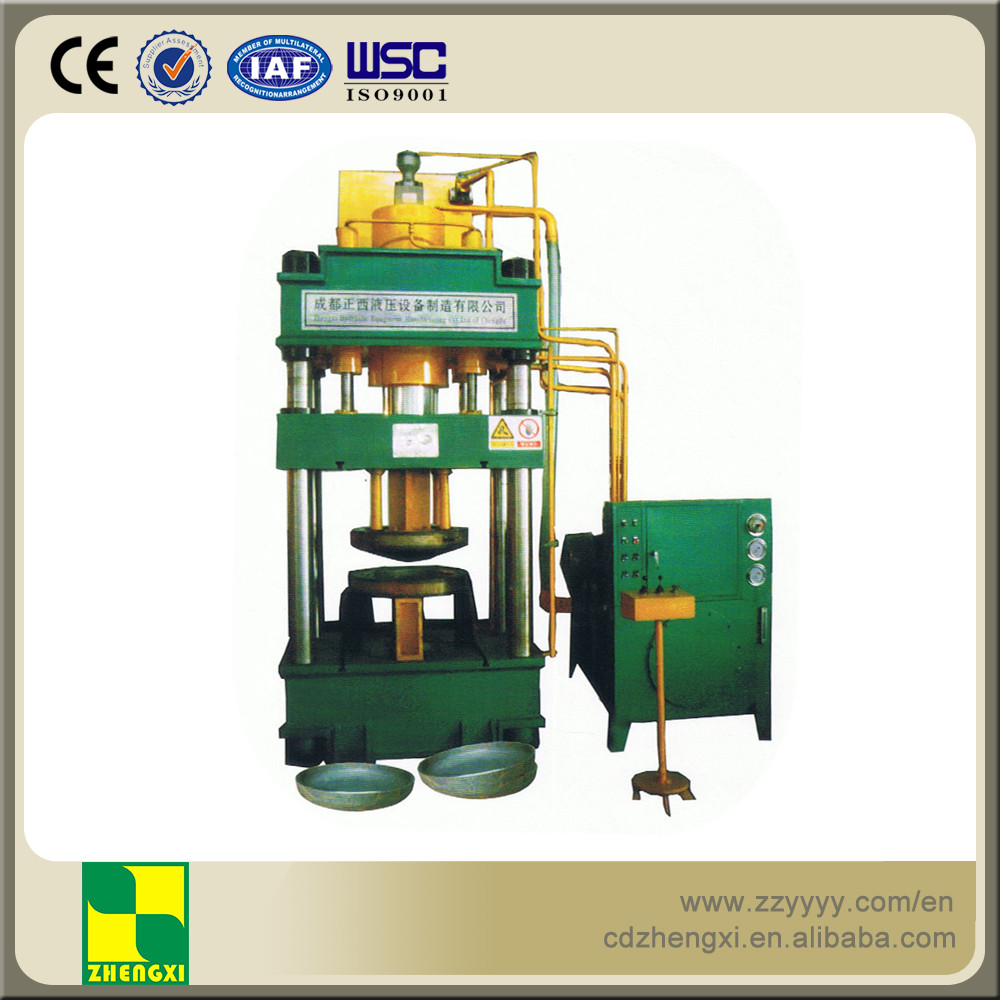

        MACHINE APPEARANCE







        PRESSING PROCESS DIAGRAM





        DATA SHEET



         Model  160t/20t*4  200t/30t*4 250t/40t*4   315t/45t*4 400t/50t*4   500t/63t*4 600t/80t*4  800t/100t*4  1000t/120t*4  1200t/150t*4   1500t/150t*4
         Normal Force(KN)  1600  2000  2500  3150  4000  5000  6000  8000  1000  12000  15000
         Liquid Pressure(Mpa)  25  25  25  25  25  25  25  25  25  25  25
         Master Cylinder Stroke(mm)  700  700  800  850  1000  1200  1200  1200  1500  1600  1600
         Edge Cylinder Stroke(mm)  550  550  600  650  700  800  800  800  1200  1200  1200
         Working Table Size(mm)  900*800  1000*900  1200*1100  1300*1200  1500*1400  1800*1700  1800*1700  2000*1800  2500*2200  2500*2200  3000*2500
         Edge Nomal Force(KN)  1200  1400  1600  1800  2000  2500  3200  4000  4800  6000  6000
         Motor Power(KW)  11  15  18.5  22  30  37  37  45  60  60  74
         Head Plate Size(mm)  400  450  500  700  800  1200  1200  1400 1600   1600  1800






        ACCESSORIES BRAND







        OPTIONAL ACCESSARIES
