        30-2000 Ton Good Price Omnipotent Four Column Hydraulic Press Machine
        Product model：Yz32
        Product number：24
        View videoBack
        Feature：
        This series hydraulic press we called omnipotent type is suit for the metal material tensile, bending, cold extrusion, cutting process, also applies to calibration, pressure equipment, powder products etc.
        Details

	  FOUR-COLUMN    HYDRAULIC PRESS

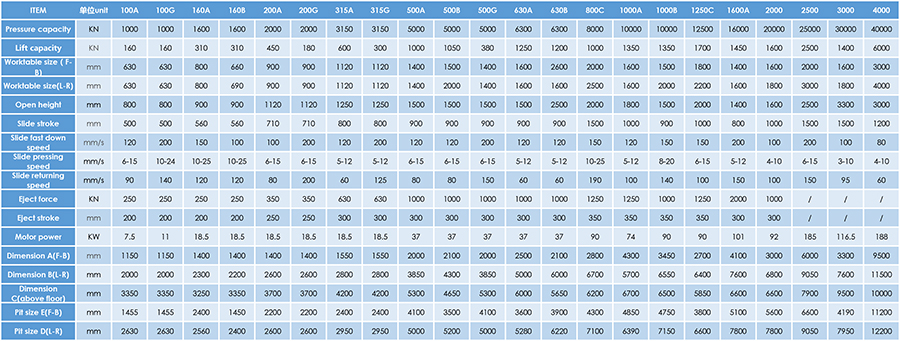

	DATA SHEET























	MACHINE FEATURE






        1.
		Applicable fields Computer optimized structure design, three
beam four-post type structure, simple, economic and practical.

          2.

        2.
		Hydraulic control USES the cartridge valve
integrated system, reliable operation, long service life, small hydraulic
impact, reduce the edge over road and leak.

          3.

        3.
		Independent of the electric control system,
reliable operation, intuitive and easy maintenance.

          4.

        4.
		Adopt centralized control buttons, with the
adjustment, manual single cycle two kinds of operating mode.

          5.

        5.
		Through the selection of operation panel,
which can realize the fixed distance and constant pressure two molding process,
and have confirmed when rolling, and other functions.

          6.

        6.
		Working pressure and stroke, according to
the needs of process can be adjusted within the prescribed scope.

          7.

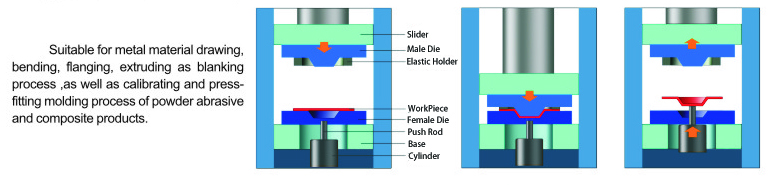

	PRESSING PROCESS DIAGRAM
